Feature
- 5 HP Heavy Duty Variable Speed 70-4200 rpm (60Hz)
- Larger 100 mm dia. ISO #40 Spindle Taper
- Head swivel: ±90°, Head tilt: ±45°,
- (X-Y-Z-Quill) Travel: 800 x 390 x 430 x 127 mm
- Hardened and Ground work table 10" x 50" (54" opt.)
- Hardened and Ground on X, Y & Z axes Slide way
- Heavy Duty Design Square Column Frame.
- Extra wide Box ways for Vertical & Cross
- Extra wide saddles
- Double lock on Ram, Table, and Knee
- Class 7 Spindle Bearings
- Chromed Precision Ground Quill with 5" travel
- Double Brass-Nut Backlash
- Compensated on X and Y Lead Screw
- Electrics with Non-Fuse Breaker
- Turcite "B" lining on X and Y axes
- Built In Coolant Return.
- Optional Powerfeed and Digital Readout
Specification

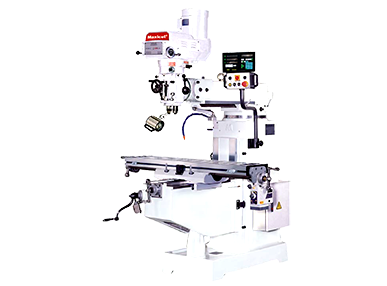

| KM-4V | |
| VERTICAL MAIN SPINDLE | |
| Working surface of table | 254 x 1270 mm |
| X-Y-Z Travel (manual) | 860 x 410 x 450 mm |
| X-Y-Z Travel (power feed) | 760 x 410 x 450 mm |
| Over ram Travel | 520 mm |
| T-slots (width x number) | 16 mm x 3 T |
| Number of Spindle Speeds | Variable speed |
| Range of spindle speed | 4200 rpm/60Hz, 3600 rpm/50Hz, |
| Spindle Quill diameter | 100mm |
| Spindle Quill travel | 140 mm |
| Down feeds of Spindle (per/rev./mm) | 0.04, 0.08, 0.15 mm/rev |
| Taper of spindle nose | ISO 40 |
| Spindle motor | 5HP |
| Motor | 3Ph, 230/380/460V Pre-wired 230V |
Over swivel on turrt |
360° |
| Head tilt; right-to-left (each way) | 90°(R & L) |
| Head tilt up-and-down (each way) | N/A |
| Maxi. Weight of Workpiece (kgs.) | 450 kg |
| Weight (approx) Kgs | 1600 |
* Specifications are subject to change without notice.
