Product Features

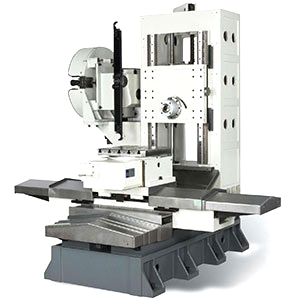

The EC-500T is a 3 axis HMC with 5 T slot table (1200 mm x 600 mm)
The EC-500R is a full 4th-axis with integrated 0.001 rotary table
The EC-5 TR is incorporates a dual-axis Tilting table to provide full 5 axis simultaneous machining.
The EC-5 APC is a full 4th-axis integrated with two platter
40 tools Magazine (option)
#40 inline direct-drive spindle, #50 as an option
Rigid construction
Specification

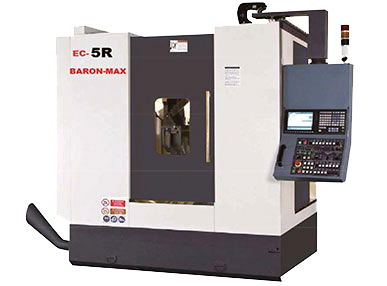

EC-5R
| EC-5R | ||
| X axis travel | 600 mm | |
| Yaxis travel | 600 mm | |
| Z axis travel | 650 mm | |
| B axis | 360° | |
| Spindle center to table surface | 90 -690 mm | |
| Spindle nose to table center | 100 mm - 710 mm | |
| Spindle speed | 10,000 rpm (Std) / 18,000 rpm (Opt - built-in spindle) | |
| Spindle taper | BT#40 or CT#40, (ISO 50 - Option) | |
| Table size | ||
Rotary Indexer |
500 x 500mm | |
| Indexing angle | 1° or 0.001° degree | |
| Load on table (pallet) | 600 kg | |
| Rapid feed X/Y/Z | 30 / 24 / 30 m/min (1181/945/1181 ipm) | |
| Cutting feed | 1~ 10,000 mm/min | |
| Spindle motor | 11/15 kW direct couple drive spindle | |
| X, Y, Z /B servo motor | 3.0 kw (Y axis with brake) | |
| Number of tools | 24 pockets (40 pockets an option) | |
| Tool shank type | BT 40 / CAT 40 | |
| Tool selection | Shortest path | |
| Max. tool weight | 8kg | |
| Max. tool diameter/length | 80 mm x 300 mm | |
| Tool exchanging Time | 2.9 seconds | |
| Accuracy | Positioning | ±0.005/500 mm |
| Repeatability | ±0.0025 mm | |
| Circularity | 0.003 mm | |
| Machine area | 3500 x 3900 x 2900 mm | |
| Packing Size (L x W x H) | 3700 x 4100 x 2550 mm | |
| Machine weight | 8,000 kg | |
| Coolant Capacity | OptionOption | |
| Air required | 6.5 bar (100 psi) | |
| Power Required | 25 KVA, 200 - 250 VAC | |
| CNC Controller | SIEMENS 802D sl (Std) or Mitsubishi M700 | |
* All data subject to change without notice
