Feature
- Portal Heavy Meehanite castings that provide the strength and vibration dampening required
for excellent surface finishes and exceptionally long cutting tool life. - Hardened /ground square ways on the Z axis and high quality linear guides on the X, Y axes.
- The X axis table traverse is accomplished via heavy duty roller linear ways for accurate
positioning of heavy work pieces. Large diameter, pre-tensioned ballscrews and powerful
servo motors further ensure accurate positioning. - rapid rates of 20/20/15 m/min in X, Y, and Z axes
- Powerful 15/18 KW spindle/10,000 rpm (12,000rpm / 18,000rpm option)
- 24-pocket Arm type tool changer - (40 pocket Arm type option)
- Rigid tapping
- Maximum Workload on Table - 3,500/4000/5000 KGS
- Complete flood coolant system with Swarf management
- Automatic, centralized lubrication system
- High efficiency machining
- Control Siemens 828D with ShopMill conversational programming for easy programming and
maximum reliability, Siemens 840d sl as an optional

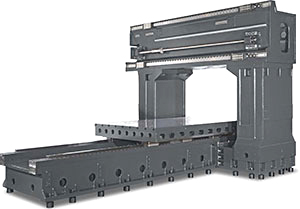

Rigid construction
Specification

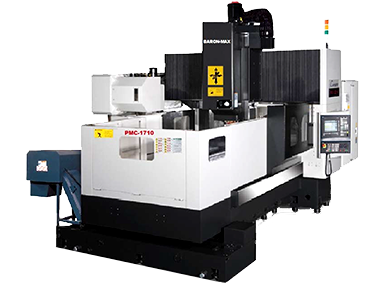

PMC-1710 / PMC-2210 / PMC-2512
| PMC-1710 | PMC-2110 | PMC-2512 | |
| TABLE | |||
| Overall Size | 1800 mm x 1000 mm | 2200 mm x 1000 mm | 2600 x 1200 mm |
| T-Slot | 22 mm x 7 x 150 mm | 22 mm x 7 x 150 mm | 22 mm x 7 x 150 mm |
| Maximum Loading | 3500 KGs | 4000 KGs | 5000 KGs |
| TRAVEL | |||
| Longitudinal travel (X Axis) | 1700 mm | 2200 mm | 2500 mm |
| Cross travel (Y Axis ) | 1000 mm (Table In & Out) | 1200 mm | |
| Vertical travel (Z Axis) | 710 mm (Head Up & Down) | 800 mm (Head Up & Down) | |
| DISTANCE | |||
| Between 2 Columns | 1200 mm | 1300 mm | |
| Spindle To Table Top | 150 mm - 850 mm | 200 - 1000 mm | |
| SPINDLE | |||
| Motor | 15/18 Kw | 18.5/22 Kw | 18.5 / 22 Kw |
| Taper | BT-40 / CT-40(Std), | BT-50 / CT-50 | BT-50 / CT-50 |
| Speed | 10,000 rpm (Std),12,000/18,000rpm (Opt) | ||
| 6,000 rpm (Std), 8,000/15,000rpm (Opt) for PMC-2110/MC-2512 | |||
| FEEDRATE | |||
| Cutting feed rate | 1~10,000 mm/ min | 1~10,000 mm/ min | |
| X-Y-Z Rapid traverse | 30 m/min | 15 /15 /15 M / min | |
| AUTOMATIC TOOL CHANGER |
|||
| No. Of Tools | 24-pocket Arm type (Std), | 32-pocket Arm type (Std), | |
| 40 pocket Arm type(Opt.) | 40 pocket Arm type(Opt.) | ||
| Max. Tool Dia. | Ø75 mm / Ø150 mm | Ø127 mm / Ø228 mm | |
| Max. Tool Length | 250 mm | 300 mm | |
| Max. Tool Weight | 7 kgs | 15 kgs | |
| Tool selection | Bi-directional random type, Shortest path | ||
| Tool Change Time | 3 sec tool to tool | ||
| Pull model | MAS 403-P40T(45°) or PS-CT40 (45°) or DIN 69872 B | ||
| COOLANT & LUBRICATION |
|||
| Coolant Tank Volume | 400 Liters | ||
| Pneumatic Required | 7 kgf / cm2 | ||
| Lubrication Tank | 4 Liters | ||
| ACCURACY | |||
| Positioning accuracy | JISB6338 ±0.008mm/ full stroke , VDI 3441 P0.025 | ||
| Repeatability accuracy | ±0.005 mm | ||
| Roundness | 0.01 mm / 300 mm DIA. | ||
| MACHINE | |||
| Max. Power input | 32 KVA | 32 KVA | 32 KVA |
| Air pressure | 6 kg/cm (85 psi) | 6 kg/cm (85 psi) | 6 kg/cm (85 psi) |
| Floor plan (W x D x H) | 6000 x 4000 x 3600 mm | ||
| Machine weight | 17,500 kgs | 19,000kg | |
* Specifications are subject to change without notice
