Feature
- 12,000 RPM Inline Direct-Drive Beltless Spindle with Spindle oil cooler
- Siemens 828D or Fagor 8060 controls ,
- Fanuc, and Mitsubishi M70 as an Option
- 24-Station Twin-Arm Tool Changer for BT#40 or CAT tooling
- 30 m/min (1,180 IPM) rapid rates for efficient production
- 300 PSI "Coolant through-the-Tool" coolant system with rotary coupling (Option)
- Chip Wash-Down & Chip Conveyor

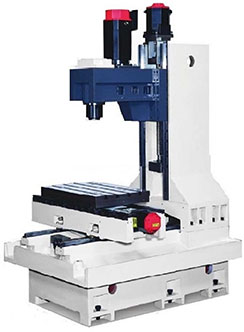

Rigid construction
Specification

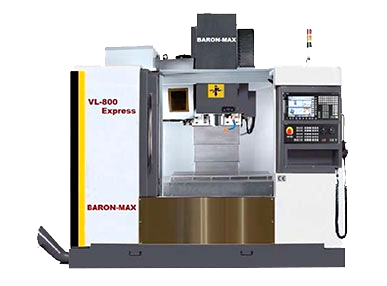

VL-800 Express
VL-800 |
||
| MACHINING ENVELOPE | ||
| Axis Travel | X | 600 mm |
| Y | 500 mm | |
| Z | 500 mm | |
| Spindle nose to table surface | 100~600 mm | |
| Spindle center to column surface | 550 mm | |
| Table | ||
| Table size (mm) | 450*900 | |
| Table loading capacity | 450 kg | |
| T-slot configuration | 16 mm*4T | |
| Spindle | ||
| Taper | BT# 40(STD.),CT#40 or DIN-69871A (Opt.), | |
CNC Control System |
Siemens 828d, or FAGOR 8060 | |
| Spindle speed | 12,000 rpm Inline Direct-Drive | |
| Coolant through spindle | Available. Complies with DIN 69871 from B tool holder | |
| Main motor (con/30 min KW) | 7.5/11 KW, (Std) | |
| Axes Transmission | ||
| X Y Z Ball screws | X-Y-Z: O32*P10*C3 |
|
| X Y Z Rapid feed | X-Y-Z axes: 30 m/min | |
| X Y Z feed rate | 12 m/min | |
| Feed Motor torque (XYZ) Nm | 12 / 12 / 16 Nm 11 / 11 / 16.5 Nm |
|
| Accuracy | ||
| Positioning | ± 0.005 (± 0.0002") | |
| Positioning repeatability | ± 0.003 mm (± 0.0001") | |
| Automatic Toolchanger | ||
| Number of Tools (ATC) | 24 tools Arm Type. | |
| Tool selection | By address code, Random / bi-directional rotation | |
| Pull stud | MAS 403-P40T (45°),CT40 (45°) or DIN 69872 B (45°) | |
| Max. Tool diameter | O 80 mm (Carousel type), O 76 mm (Arm type), | |
| Max. Tool weight | 6 KGs | |
| Max. Tool length | 300 mm (12") | |
| Tool change time (tool to tool) | 2.5 sec for arm type(Opt.) | |
| Coolant and Chip Management | ||
| Swarf removal | Chip auger (Standard), Chain type Chip Conveyor (Option) | |
| Coolant Tank Capacity | 200 L | |
| Wash Down | Standard | |
| Wash Gun | Standard | |
| Air Gun | Standard | |
| Cutter air blast | Standard | |
| Coolant Through Spindle (20/50 bar) | Option | |
| Guide Ways | ||
| Way Construction (X, Y, Z) | X-Y-Z Linear Guide ways | |
| Way Size (X, Y, Z) - mm | X:#30, Y: #30, Z: #35 |
|
| Number of Linear Guides: X axis | 2 Guides: X (Ball) | |
| Number of Linear Guides: Y axis | 2 Guides: Y (Ball) | |
| Number of Linear Guides: Z axis | 2 Guides: Z (Ball) | |
| Number of Guide Trucks: X, Y axis | X axis: 4, Y axis: 4 |
|
| Number of Guide Trucks: Z axis | 4 | |
| Machine Dimensions (W x D) (cm) | 260 cm*210 cm |
|
| Machine height | 270 cm | |
| Coolant pump motor | 1 HP | |
| Air required | 7 kg/cm (85 psi) | |
| Machine weight (Approx.) | 3600 kg | |
* Specifications are subject to change without notice
