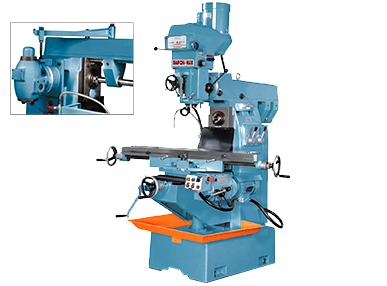

Feature
- 5 HP, NT40 Taper, 20 speed, 60~3620rpm (50Hz)
- Vertical head can be swivel: ±90°
- Universal Table can be swiveled (R & L): ±45°
- Quill travel: 150 mm
- Hardened & Ground slide ways
- X-axis table feed by Gear boxes drive.
- Cross by Gear boxes drive (Option)
- Lifting motor for knee up-down (Option)
- (X-Y-Z) Travel: 700 x 300 x 330 mm (Standard)
- (X-Y-Z) Travel: 800 x 300 x 330 mm (Option)
- Table size: 300 x 1200 mm (Std), 300 x 1300mm (opt)
- Flood coolant system
Specification
| KM-3VH | |
| Work Table | |
| Working surface of table | 300 x 1200 mm, 300 x 1300 mm (Opt.) |
| Longitudinal travel | 700 mm (standard), 800 mm (Option) |
| Cross travel | 300 mm |
| Vertical travel | 330 mm |
| Range of longitudinal feed speed (mm/min) | 60Hz: (21~246), 50Hz: (17~203) |
| Range of longitudinal rapid speed (mm/min) | 60Hz: (1620), 50Hz: (1350) |
| Table will swivel (R & L) | ±90° |
| Vertical Main Spindle | |
| Spindle speeds | 60Hz: 70~3925 rpm (20 steps) 70~3800 rpm (Variable speed) |
| Quill travel | 150 mm |
| Taper of spindle nose | N.S.T 40# |
| Head will swivel (R & L) | ±90° |
| Swiveling angle of overarm | 360° |
| Traverse of over arm | 455 mm |
| Spindle nose to table surface | 70~420 mm |
| Spindle center to column surface | 155~475 mm |
| Horizontal Main Spindle | |
| Range of spindle speeds (6 steps) rpm | 60Hz: (108~1470), 50Hz: (90~1225) |
Taper of spindle bore |
N.S.T 40# |
| Spindle center to table | 0~330 mm |
| Spindle center to over arm bottom | 135 mm |
| MOTOR | |
| Vertical milling | 5 HP |
| Horizontal milling | 4 HP |
| Table longitudinal feed | 1-1/2HP |
| Coolant pump | 1/8 HP |
| Net weight (approx.) | 1350 KGs |
| Gross weight | 1650 KGs |
| Packing measurement (L x W x H) | 1450 x 1500 x 1960 mm |
* Specifications are subject to change without notice.
