Product Features
High rigid Cartridge Belt Drive Spind
High rigid Cartridge Belt Drive Spind
High rigid Cartridge Belt Drive Spind
Largest and rigidity column
the ballscrews and linear ways are lubricated automatically by timer controlled oil injection
the ballscrews and linear ways are lubricated automatically by timer controlled oil injection
24 Tools Swing Arm type ATC
A screw type auger is provided as a standard feature
Double-anchored ballscrews with twin pre-loaded ball nut
Double-anchored ballscrews with twin pre-loaded ball nut
Double-anchored ballscrews with twin pre-loaded ball nut
Double-anchored ballscrews with twin pre-loaded ball nut
Rigid construction
Super-rigid construction four box ways with Large 820 mm Y - Travel
Specification

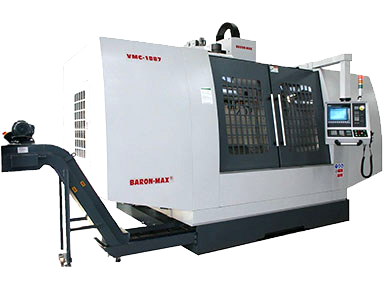

VMC-1688 / VMC-1887 / VMC-2087
VMC-1687 |
VMC-1887 |
VMC- 2087 |
|
| MACHINING ENVELOPE | |||
| Table Travel (X Axis) | 1600 mm | 1800 mm | 2000 mm |
| Saddle Travel (Y Axis) | 825 mm | 825 mm | 825 mm |
| Head Travel (Z Axis) | 750 mm | 750 mm | 750 mm |
| Spindle center to column | 850 mm | 850 mm | 850 mm |
| Spindle nose to table | 150-900 mm | 150-900 mm | 150-900 mm |
| Work Table | |||
| Table Size overall (mm) | 1700*800 | 1900*800 | |
| Table loading capacity | 2000 kg | 2000 kg | 2500 kg |
| T-slots (width x No x patch) | 22x5x180 mm | 22x5x180 mm | 22x5x180 mm |
| Spindle | |||
| Spindle Taper | BT# 40(STD.), DIN-69871A (Opt.), BT 50 (Option) BT# 50 | ||
CNC Control System |
SIEMENS 802D sl or FAGOR 8055i MC (Std) Options - Siemens 828d, FAGOR 8060i ,or Mitsubishi 70 |
||
| Spindle speeds (belted) | 8,000 (Std), (Option /12000, or 15000rpm) 6000rpm | ||
| Main motor (S6- 60%) | 12 /16 KW (20hp) std 22/30 KW (40hp) - Option 22/30 KW | ||
| Axes Transmission | |||
| X Y Z rapid feed | 15 / 15/ 15 m/min |
10 / 12/ 10 m/min |
|
| X Y Z feed rate | 10 m/min | 6 m/min | |
| Feed Motor torque (X-Y-Z) | 16 / 16 / 16 Nm (Siemens / FAGOR), 30 / 30 / 30 Nm (for VMC-30108) | ||
| Accuracy | |||
| Positioning | ±0.005 (±0.0002") | ||
| Positioning repeatability | ±0.003 mm (±0.0001") | ||
| Automatic Tool changer | |||
| Tool shank | BT# 40(STD.), or DIN-69871A (Opt.), BT#50 Opt. | ||
| Standard Carousel capacity | 20 | 20 | 20 |
| Side-Mount Swing Arm Option | 24 | 24 | 24 / 40 |
| Tool selection | By address code, Random / bi-directional rotation | ||
| Pull stud | MAS 403-P40T (45°),CT40 (45°),DIN 69872 B (45°) | ||
| Max. Tool diameter | Ø80 mm (Carousel type), Ø76 mm (Arm type), | ||
| Max. Tool weight | 6 Kg | ||
| Max. Tool length | 300 mm (12") | ||
| Tool change time | |||
| Chip-to-chip/Tool-to-tool | 7 Seconds for Carousel type, (3 Seconds for Arm Type Option) | ||
| Coolant pump motor | 3/4 HP , 1-1/2 HP (Option) | ||
| Air required | kg/cm (85 psi) | ||
| Coolant and Chip Management | |||
| Swarf removal | Chip auger standard, Chip Conveyor option | ||
| Coolant Tank Capacity | 320 L | 320 L | 320 L |
| Wash Down | Option | Option | Option |
| Wash Gun | Standard | Standard | Standard |
| Air Gun | Standard | Standard | Standard |
| Cutter air blast | Standard | Standard | Standard |
| Coolant Through Spindle | Option | Option | Option |
| Slides | |||
| Way Construction (X, Y, Z) | 4th Box ways | ||
| Machine Dimensions (W x D) | 345 x 300 cm | 365 x 300 cm | 480x300 cm |
| Machine height | 270 cm | 270 cm | 300 cm |
| Machine weight (Approx.) kgs | 14,500 | 15,500 | 16,500 |
* Specifications are subject to change at the manufacturers discursion
