Product Features

Carriage & Apron:

The cross slideways are hardened and ground,the saddle slideways are covered with Turcite to reduce friction.


A heavy-duty casting design for maximum rigidity to support work pieces or tooling. With MT#5 taper,


Gears in the headstock are made of chromium molybdenum steel (SCM-21), treated by cementation then precisely ground to provide smooth and quiet running. The spindle is supported by precision taper roller bearings.

Bed & Bedways

The extra-wide 450mm bed is constructed of Meehanite casting for maximum rigidity, The pre-stressed bedways are induction heat-treated and ground for ware resistance


Double-chucks capability, the spindle can be equipped with a second chuck in the rear end of the spindle to support long work pieces.

6", 9", 10", 12" Spindle bore available

EV series

Inverter Drive for variable speed

3 gear speed ranges
Electronic control panel with rpm display, light indicator for high, mid and low speed ratio, speed control electric knob, emergency switch and motor start push button
Equipped with similar CSS function

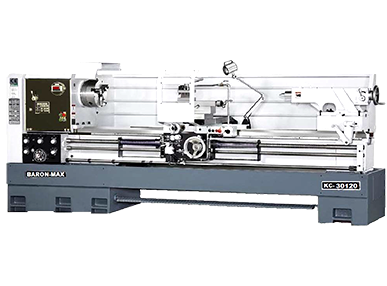

KC-3060 / KC-3080 / KC-30120 / KC-30160 / KC-30200 / KC-30240


KC-3080 KC-30120 KC-30160 KC-30200 KC-30240
General Capacity
Center height 385mm, (*420 mm)
Max. swing over bed 770mm, (* 840 mm)
Max. swing over gap 980mm opt., (* 1020 mm opt.)
Max. swing over cross slide 500mm, (* 570 mm)
Distance between centers 1600mm 2100mm 3100mm 4100mm 5100mm 6100mm
Main Spindle
Spindle nose A2-11 (for KC-3000 or KC-3300)
Spindle bore 105mm (Standard for KC-3000 or KC-3300)
155mm (6") (for KC-3000 or KC-3300) (opt.)
Spindle speeds (18 steps) Ø105mm: 20 -1500rpm / Ø155mm:10~800rpm
Gross slide travel 450mm

Compound rest travel

Tailstock spindle dia.


Tailstock spindle travel 220mm
Tailstock spindle taper MT#5
Bed width 450mm
Lead screwl 2TPI or 12mm/pitch
Metric pitch threads 0.08-14mm/pitch (65 kinds)
Inch threads 2-28TPI(36 kinds)
Module pitch threads 0.5-7M(22 kinds)
DP threads 4-56TPI(36 kinds)
Feeding Range
Range of longitudinal feeds 0.05-0.7mm/rev
Range of cross feeds 0.025-0.35mm/rev
Main spindle motor 15HP (standard) / 20HP or 25 HP (opt.)
Rapid feed motor 1/4HP
Coolant pump motor 1/4HP / 1-1/2 HP (Option)
Net Weight Approx. 3500kgs 3850kgs 4350kgs 4850kgs 5350kgs 5950kgs

* Specifications are subject to change without notice
